The open mouth bagging systems are specifically engineered to efficiently bag free-flowing materials into open-mouth bags weighing between 5 and 50 kg per bag. These systems are particularly suited for bagging flakes and granules in industries such as Food, Feed, Pet Food, Chemicals, and Minerals.
Key Features of Open Mouth Baggers:
- Automatic adjustments for quick product and bag changeovers
- Comprehensive bag top control
- Enhanced dust control for optimized operation
- PLC controlled with user-friendly human-machine interfaces (HMI)
- Configurations designed for easy cleaning and maintenance
- Compact design ideal for limited packaging spaces
- Fully integrated gross or net weighing system for accuracy
Machine Specifications:
- Compatible with various bag closing devices
- Bag marking systems for both empty and filled bags
- Product de-aeration capabilities
- Remote control panel for convenience
- Bag turning functionality
- Available in closed bag (top or bottom first) design
- Constructed with a full stainless steel body for durability
Applications of Open Mouth Bagging Machines:
These machines are suitable for packing powders with good fluidity, including starch, flour, tea powder, salt, and more.
Compatible Bags:
Suited for paper bags, paper-plastic composite bags, PE bags, woven bags, aluminum foil bags, and others.
Technical Parameters:
- Model Series: FP200/400/600
- Packable Products: Granules/powders/flake particles
- Bag Type: PE bags/aluminum foil bags/woven bags/paper bags/paper-plastic composite bags, etc.
- Roll Film: Diameter of roll film ≤1500mm, inner tube of roll film: 150mm (6 inches)
- Empty Bag Size: L(500-750mm), W(320-420mm)
- Packaging Weight: 20-50 kg per bag
- Packaging Speed: 600-800 bags/h
- Power: 3 kW
- Air Consumption: 200 NL/min

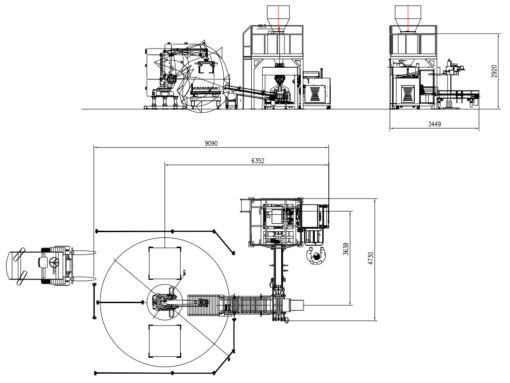

- Equipment Size (LWH): 290429202190
Work Process:
- Pre-place Empty Bags
- Take an Empty Bag
- Open Empty Bag
- Supply Empty Bag
- Material Filling
- Holding Bag and Heat Sealing
For further details and a visual representation of our factory, please refer to the Factory Gallery images.
