The open mouth bagging systems are specifically designed to bag free-flowing materials into open-mouth bags, with applications ranging between 5 and 50 kg per bag. These systems are particularly suited for bagging flakes and granules in industries such as Food, Feed, Pet Food, Chemicals, and Minerals.
The open mouth bagging equipment comes in three modular design versions: the compact open-mouth bagging system (FP-200 SERIES up to 200 bags per hour / FP-400 SERIES up to 400 bags per hour), high-speed open-mouth bagging system (FP-600 SERIES, up to 600 bags per hour), and high-speed open-mouth bagging system for PE bags (FP-600 FS SERIES, up to 600 bags per hour). The units can be equipped with either gross or net weighing systems for optimal performance.
Key Features of Open Mouth Bagger:
- Automatic adjustments for quick product and bag changeovers
- Complete bag top control
- Enhanced dust control
- PLC controlled with user-friendly human machine interfaces (HMI)
- Easy-to-clean and maintain configurations
- Compact design suitable for limited packaging spaces
- Fully integrated gross or net weighing system
Machine details include various bag closing devices, bag marking systems for empty or filled bags, product de-aeration, remote control panel, bag turning, closed bag handling (top or bottom first), and a full stainless steel design.
Applications of Open Mouth Bagging Machine:
The open mouth bagging machine is adept at packing powders with good fluidity like starch, flour, tea powder, salt, etc.
The machine can be used for tasks such as washing powder packaging, salt packing, rice packing, flour packing, beans packing, pet food packing, PVC packaging, and fertilizer packing.
Packing Sample:
It caters to various types of bags including paper bags, paper-plastic composite bags, PE bags, woven bags, aluminum foil bags, etc.
Technical Parameters:
- Model Series: FP600
- Packable Products: granules/powders/flake particles
- Bag Type: PE bags/aluminum foil bags/woven bags/paper bags/paper-plastic composite bags, etc.
- Roll Film Details: Diameter of roll film ≤1500mm, inner tube of roll film: 150mm (6 inches)
- Packaging Weight: 20-50 kg/bag
- Packaging Speed: 500~600 bags/h
- Power: 3 kW
- Air Consumption: 200 NL/min

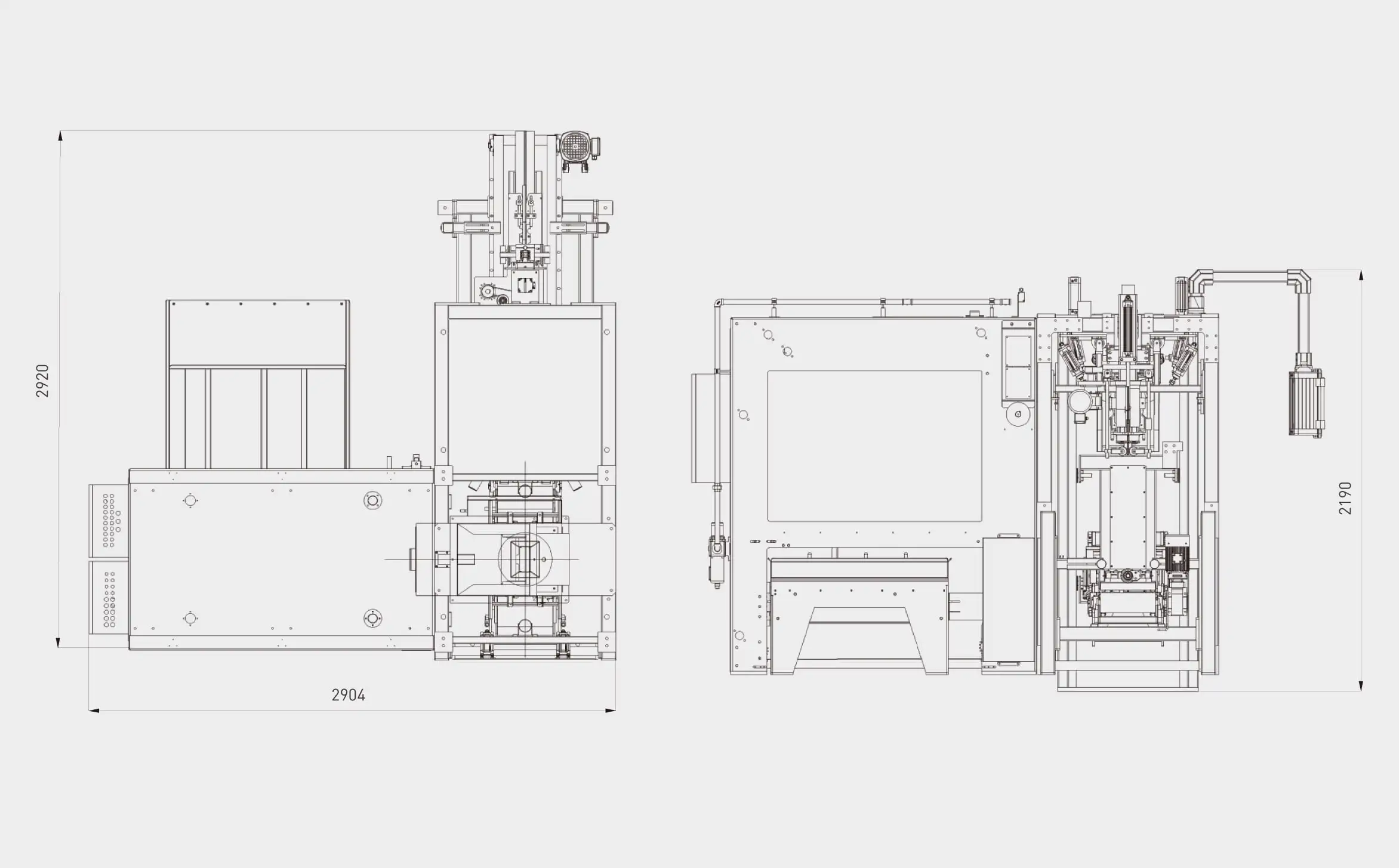

- Equipment Size (LWH): 2904 2920 2190
Factory Gallery:
[Insert factory images here]
