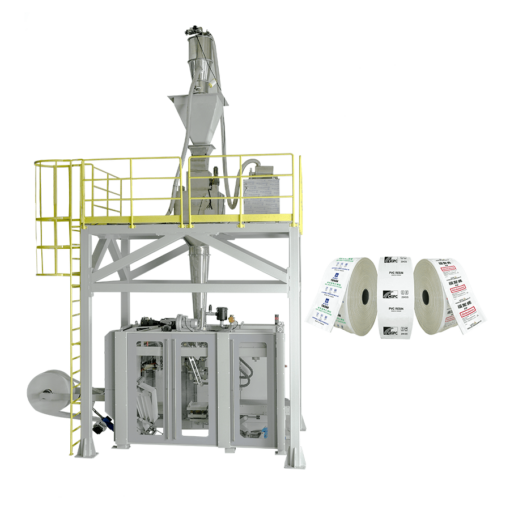

The automatic FFS packaging machine for film bags is designed to efficiently transform cylindrical film rolls into individual open-mouth bags, allowing for material bagging, heat sealing, and final product output. This advanced machine boasts a compact structure with high integration, saving valuable space in your facility. By executing bag making, filling, and sealing simultaneously, it significantly enhances packaging speed and efficiency.
Key Features:
- Compact design with high integration
- Simultaneous bag making, filling, and sealing
- Improved filling rate with precise servo technology for bag length control
- Instant high-temperature sealing and rapid cooling technology for superior seal quality
- Advanced fieldbus technology for user-friendly interface and intelligent system diagnostics
Technical Specifications:
- Model Series: FFS
- Suitable Products: Granules, powders, flake particles
- Bag Type: M-type PE packaging roll film with a melt index >0.2, film thickness 140-180um
- Roll Film Size: Max diameter of 1500mm, inner tube diameter of 150mm
- Sealing Method: Heat sealing
- Packaging Weight: 20-50 kg/bag
- Packaging Speed: 600-1000 bags/h
- Power: 11 kW
- Air Consumption: 200 NL/min
- Equipment Size: 5130 x 1800 x 2260 mm (L x W x H)
Applications:
This FFS packaging machine is widely used in various industries such as chemical, food, and agricultural sectors for packaging products like nuts, seeds, pet foods, and more in plastic bags.
Machine Operation:
1. Roll Film Support: Features air expansion shaft for easy film change
2. Corner Sealing: Adjustable temperature and width for precise sealing
3. Bag Length Adjustment: Geared motor for bag length customization
4. Bag Making: Film cut to specified length and sealed
5. Bag Delivery: Bags transferred for further processing
6. Bag Opening: Vacuum system assists in bag opening
7. Filling: Material weighed and dropped into bags
8. Sealing: Bag mouth sealed for product containment
9. Delivery: Completed bags moved to the next stage
Additional Options:
The machine offers various optional features such as automatic reel changing, deaeration, gusset making, hole punching, and more for enhanced functionality.
