The open mouth bagging systems are tailored for packaging free-flowing materials into open-mouth bags, ranging between 5 and 50 kg per bag. These systems are particularly well-suited for bagging flakes and granules within the Food, Feed, Pet Food, Chemicals, and Minerals industries.
Key Points:
- This open mouth bagging machine can fill bags weighing between 10-25 kg or 25-50 kg, at a rate of 550-650 bags/h or up to 800-1000 bags/h for the high-speed model.
- It features automatic high-speed and continuous bag supplying capabilities.
- Each unit includes control and safety devices for automatic and seamless operation.
- The equipment is driven by SEW motors for improved efficiency.
Key Features:
- Automatic adjustments for quick product and bag changes
- Comprehensive bag top control
- Enhanced dust control for optimization
- PLC controlled with a user-friendly human-machine interface (HMI)
- Easy-to-clean and maintain configurations
- Compact design suitable for confined packaging spaces
- Fully integrated gross or net weighing system
Machine Details:
- Supports various bag closing devices
- Offers bag marking systems for empty or filled bags
- Includes product de-aeration and remote control panel features
- Can turn bags and design closed bags (top or bottom first)
- Features a full stainless steel design
Applications:
- Ideal for packing powders with good fluidity such as starch, flour, tea powder, salt, etc.
Packing Samples:
- Suitable for paper bags, paper-plastic composite bags, PE bags, woven bags, aluminum foil bags, and more.
Technical Parameters:
Model Series: FP600
Packable Products: Granules/powders/flake particles
Bag Type: PE bags/aluminum foil bags/woven bags/paper bags/paper-plastic composite bags etc.
Roll Film: Diameter of roll film ≤1500mm, inner tube of roll film: 150mm (6 inches)
Empty Bag Size: L(500-750mm), W(320-420mm)
Packaging Weight: 20-50 kg/bag
Packaging Speed: 500~600 bags/h
Power: 3 kW
Air Consumption: 200 NL/min

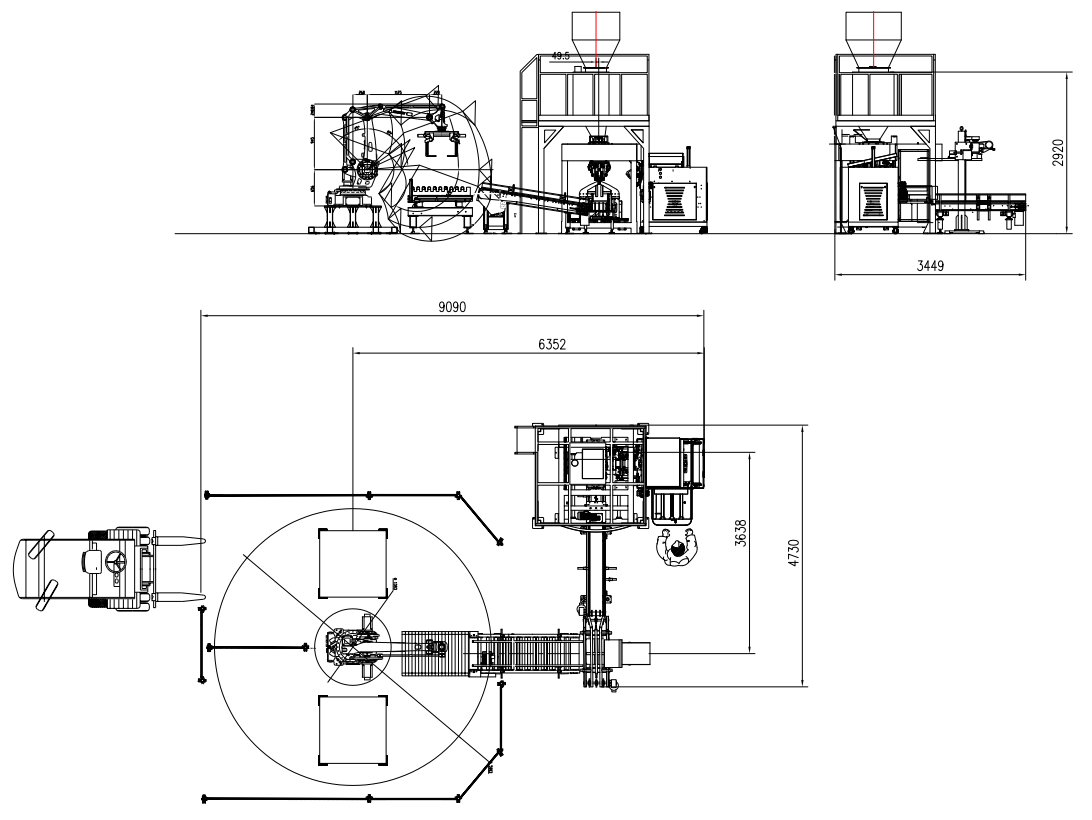

Equipment Size (LWH): 2904 2920 2190
Working Process:
- Pre-place Empty Bags
- Take an Empty Bag
- Open Empty Bag
- Supply Empty Bag
- Material Filling
- Holding Bag and Heat Sealing
These systems provide efficient and reliable bagging solutions for various industries and materials.
