List Technical Parameters of "tube labeling machine"

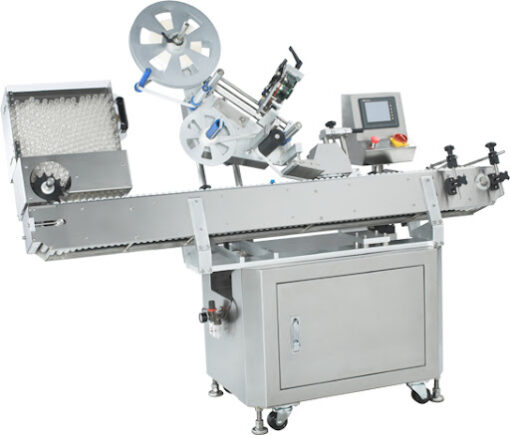

A tube labeling machine is a specialized piece of equipment used to apply labels accurately on tubes in various industries like pharmaceuticals, cosmetics, and food. Here's a succinct overview of the technical parameters:
1. Label Size:
- Width: Specifies the minimum and maximum widths the machine can handle.
- Length: Identifies the minimum and maximum lengths the machine supports.
2. Tube Size:
- Diameter: Defines the range of tube diameters the machine can accommodate.
- Length: Indicates the permissible lengths of the tubes.
3. Labeling Speed:
- Labels per Minute: Measures how many labels the machine can apply in a minute.
4. Precision:
- Labeling Accuracy: Specifies the deviation range allowable for label placement.
5. Control System:
- Type: Could be PLC (Programmable Logic Controller) based or touchscreen interface.
- User Interface: Details about the control panel, ease of switching between different settings.
6. Material Compatibility:
- Label Material: Types of label materials the machine can handle (e.g., paper, plastic, foil).
- Tube Material: Types of tube materials that are compatible (e.g., plastic, metal).
7. Power Supply:
- Voltage: Voltage requirement for the machine (common specifications include 220V, 50/60Hz).
- Power Consumption: Electrical power consumption rating.
8. Dimensions and Weight:
- Machine Dimensions: Physical size of the equipment.
- Weight: Total weight of the machine.
9. Operational Environment:
- Temperature Range: Optimal operating temperatures.
- Humidity Range: Suitable humidity conditions.
10. Additional Features:
- Printer Integration: Capability to integrate date, batch, or QR code printers.
- Sensors: Types and positioning of sensors for automatic detection and adjustments.
- Conveyor System: Description of the in-feed and out-feed conveyor systems.
- Adjustability: Easy adjustability for different tube sizes and label placements.
11. Safety Features:
- Safety Guards: Describes any safety shields or guards included.
- Emergency Stop: Emergency stop button availability and placement.
These technical specifications help in selecting the appropriate tube labeling machine based on application requirements and operational efficiency.
List Product features of "tube labeling machine"
A tube labeling machine is designed to apply labels on cylindrical and conical tubes efficiently and accurately. Below are the key features of a tube labeling machine:
1. High Precision Labeling: Ensures accurate placement of labels on tubes, minimizing misalignment and ensuring a professional appearance.
2. Versatile Tube Handling: Capable of handling various tube sizes and materials, including plastic, metal, and glass.
3. Speed and Efficiency: Offers high-speed labeling capabilities to meet demanding production requirements, often with adjustable speed settings.
4. Automatic Feeding System: Equipped with an automated tube feeding mechanism to enhance efficiency and reduce manual handling.
5. Label Detection System: Incorporates sensors to detect and correct labeling errors such as missing labels or improper placement.
6. User-Friendly Interface: Features intuitive touch screen controls for easy operation and quick adjustments by the operator.
7. Memory Functionality: Allows for storage of multiple label configurations and settings to facilitate quick changeovers.
8. Integration Capabilities: Can be integrated with existing production lines and systems for seamless operation and synchronization.
9. Robust Construction: Made from durable materials to withstand continuous operation and harsh industrial environments.
10. Adjustable Components: Includes adjustable guides and label applicator heads to accommodate different tube diameters and lengths.
11. Label Types Compatibility: Supports various label types, including self-adhesive, wrap-around, and shrink sleeve labels.
12. Quality Control Features: Often equipped with vision systems to inspect labels and ensure they meet quality standards.
13. Low Maintenance: Designed for easy maintenance and reduced downtime with accessible parts and self-cleaning functions.
14. Safety Features: Complies with safety standards, including emergency stop buttons and protective covers.
15. Energy Efficient: Engineered to consume less power while maintaining high performance.
These features make tube labeling machines a vital component in industries such as cosmetics, pharmaceuticals, and food and beverage, providing reliable, high-quality labeling solutions.
List Application of "tube labeling machine"
A tube labeling machine is a specialized piece of equipment designed to apply labels to cylindrical tubes, commonly used across various industries. Below are some key applications:
1. Pharmaceuticals:
- Medication Identification: Ensures that medications are clearly labeled to meet regulatory standards.
- Lot and Batch Tracking: Facilitates the tracking of production batches for quality control and recall purposes.
2. Cosmetics:
- Branding: Provides a professional look with accurately placed branded labels.
- Product Information: Displays crucial information like usage instructions, ingredients, and expiration dates.
3. Food and Beverages:
- Nutritional Information: Ensures compliance with food labeling regulations by displaying nutritional facts.
- Brand Visibility: Enhances shelf appeal through attractive and correctly aligned labels.
4. Chemicals:
- Safety Information: Displays hazard symbols and safety handling instructions crucial for compliance with safety regulations.
- Tracking and Batch Numbers: Ensures traceability for quality assurance and regulatory compliance.
5. Personal Care Products:
- Product Identification: Differentiates among various personal care items like shampoos, lotions, and creams.
- Compliance: Meets labeling requirements by providing necessary product details.
6. Industrials:
- Component Labeling: Labels small components in manufacturing settings for easier identification and assembly.
- Regulatory Compliance: Ensures all industrial lubricants and chemicals have appropriate safety labels.
7. Healthcare:
- Medical Devices: Labels various medical devices and equipment for easy identification and usage instructions.
- Sample Identification: Used in labs for labeling test tubes and vials, aiding in the accurate tracking of samples.
Summarizing, tube labeling machines are integral to numerous sectors, particularly where precise labeling and compliance with regulations are critical. They enhance efficiency, ensure safety, and streamline both production and distribution processes.
List Various Types of "tube labeling machine"
Tube labeling machines are specialized equipment designed to apply labels to various types of tubes used in industries like pharmaceuticals, cosmetics, and food. Here are the various types of tube labeling machines:
1. Wrap-Around Labeling Machines:
- Fully Automatic Wrap-Around Labeler: Ideal for high-speed production lines, it applies labels around the circumference of tubes.
- Semi-Automatic Wrap-Around Labeler: Suitable for mid-sized operations, requiring manual placement of the tube but automatic application of the label.
2. Horizontal Tube Labeling Machines:
- These machines are designed specifically for labeling tubes in a horizontal orientation, often used for small or lightweight tubes.
3. Sleeve Labeling Machines:
- Shrink Sleeve Labeler: Applies a plastic sleeve label that shrinks to fit the shape of the tube when heated.
- Stretch Sleeve Labeler: Uses elastic labels that are stretched to fit over the tube and naturally constrict to fit snugly.
4. Front and Back Labeling Machines:
- Applies separate labels to the front and back of the tube, often used for tubes requiring extensive product information or branding.
5. Top and Bottom Labeling Machines:
- Applies labels to the top and/or bottom surfaces of a tube, commonly used when specific positioning is essential.
6. In-line Tube Labelers:
- These are integrated directly into the production line, labeling tubes as they move along the conveyor belt, allowing for seamless operations without interruptions.
7. Rotary Tube Labeling Machines:
- Utilizes a rotating mechanism to position the tube accurately for label application, typically used for higher precision and higher output rates.
8. Multi-Sides Labeling Machines:
- Capable of applying labels to multiple sides of a tube, often used for products needing extensive labeling on all sides.
Each type of tube labeling machine comes with its unique advantages and is selected based on factors like production speed, tube type, labeling accuracy, and the complexity of labeling requirements.
Custom Manufacturing Options for tube labeling machine
When seeking custom manufacturing options for a tube labeling machine, several key factors should be considered to enhance functionality and efficiency. Here are some customizable aspects to explore:
1. Label Applicator Type: Choose between pressure-sensitive, hot glue, or shrink sleeve label applicators based on the tube material and industry requirements.
2. Print Technology: Opt for integrated printing solutions such as thermal transfer or inkjet printers for on-demand date codes, batch numbers, and other variable information.
3. Materials Compatibility: Ensure the machine can handle different tube materials, including plastic, metal, and laminated tubes, by adjusting the gripping and feeding mechanisms.
4. Speed and Throughput: Customize the machine’s speed to match production demands. High-speed models with advanced servo motors and synchronized components can increase efficiency without compromising accuracy.
5. Label Inspection: Integrate vision systems for automatic label inspection to check alignment, presence, and print quality, reducing the chance of defects reaching the customer.
6. Ergonomic Design: Tailor the machine design for easy use and maintenance. Consider features like quick-change label heads and tool-less adjustments to minimize downtime.
7. Footprint and Integration: Adjust machine size to fit the existing production line layout. Ensure it can integrate seamlessly with other equipment, such as filling and sealing machines.
8. Advanced Control Systems: Incorporate PLC (Programmable Logic Controller) with a user-friendly HMI (Human-Machine Interface) for easy operation, monitoring, and troubleshooting.
9. Compliance and Safety: Ensure the design meets industry regulations, including FDA, GMP, and CE standards, to maintain safety and compliance.
10. Material Handling: Customize feeding and exiting systems to accommodate various tube sizes and shapes, ensuring smooth and reliable tube transfer.
By focusing on these customizable elements, you can develop a tube labeling machine tailored to your specific production needs, ultimately enhancing operational efficiency and product quality.
List Quality Control and The Manufacturing Process of "tube labeling machine"
Quality Control
1. Incoming Material Inspection:
- Check raw materials (steel, aluminum, electronic components) for compliance with specifications.
2. Component Testing:
- Perform electrical and mechanical tests on parts like sensors, motors, and control panels.
3. In-Process Inspection:
- Inspect sub-assemblies at specific checkpoints to ensure they meet design criteria.
4. Assembly Verification:
- Verify that components are assembled correctly, including alignment and torque settings.
5. System Calibration:
- Calibrate sensors and control systems to ensure accurate labeling.
6. Functional Testing:
- Run the machine to test functionality, including label application speed and accuracy.
7. Final Inspection:
- Conduct a thorough examination of the final product, checking for defects like misaligned labels or malfunctioning parts.
8. Documentation and Compliance:
- Ensure all quality checks are documented and the machine complies with industry standards (ISO, CE).
Manufacturing Process
1. Design and Prototyping:
- Create detailed design specifications and build a prototype for initial testing.
2. Material Procurement:
- Source materials and components based on the design requirements.
3. Fabrication:
- Fabricate machine components using CNC machining, laser cutting, and welding processes.
4. Component Assembly:
- Assemble mechanical parts like frames, conveyors, and labeling heads.
5. Electrical Assembly:
- Install electrical components, including wiring, sensors, and control panels.
6. Sub-assembly Integration:
- Combine sub-assemblies into the main unit, ensuring correct fit and function.
7. Pre-assembly Testing:
- Test sub-assemblies individually for functionality before final assembly.
8. Final Assembly:
- Integrate all components into the final machine structure.
9. Calibration and Tuning:
- Calibrate the machine’s sensors, motor speeds, and label placement mechanisms.
10. Functional Testing:
- Perform rigorous functional tests to ensure the machine operates as expected.
11. Quality Inspection:
- Conduct a final quality check, adhering to the quality control measures.
12. Packaging and Shipping:
- Securely pack the machine and prepare it for shipment to ensure it arrives safely to the customer.
How to use "tube labeling machine"
Using a tube labeling machine involves a series of steps to ensure efficient and accurate label application. Here's a concise guide:
1. Preparation:
- Read the Manual: Always start by reading the user manual for specific instructions related to your model.
- Power On: Plug in and turn on the machine.
- Check Supplies: Ensure you have enough labels and tubes.
2. Machine Setup:
- Load Labels: Place the roll of labels onto the spindle, threading it through the guides and rollers as specified in the manual.
- Adjust Feed Mechanism: Adjust the label feed mechanism to match the width and length of the labels and tubes.
- Calibrate Sensors: Ensure sensors are calibrated to detect the labels correctly. This may involve adjusting sensitivity settings.
3. Tube Preparation:
- Clean Tubes: Ensure tubes are clean and dry to facilitate proper adhesion of labels.
- Load Tubes: Place the tubes into the machine's designated loading area or feed them into the machine, based on the design.
4. Labeling Process:
- Set Parameters: Set the labeling parameters on the control panel, such as the speed, spacing, and number of labels.
- Test Run: Conduct a test run with a few tubes to check alignment, adhesion, and overall performance. Adjust settings if necessary.
- Start Labeling: Once everything is set, begin the labeling process. The machine will automatically apply labels to each tube.
5. Post-Labeling:
- Inspect: Check the labeled tubes for quality assurance.
- Adjust if Necessary: Make any minor adjustments based on the inspection results.
- Clean Up: Turn off the machine and clean any residue or adhesive that may have accumulated.
By following these steps, you can efficiently use a tube labeling machine to streamline your labeling process.
List Properties and Terms of "tube labeling machine"
A tube labeling machine is an essential piece of equipment used in various industries for applying labels to cylindrical containers such as tubes, bottles, and vials. Here are some key properties and terms associated with tube labeling machines:
Properties:
1. Automation Level: Ranges from semi-automatic to fully automatic, affecting throughput and labor requirements.
2. Labeling Speed: Measured in units per minute (UPM) or units per hour, indicating the machine's efficiency.
3. Accuracy: Precise placement of labels to avoid misalignment and ensure professional final products.
4. Durability: Constructed from robust materials like stainless steel to withstand operational wear and tear.
5. Versatility: Ability to handle various tube sizes and shapes, and adaptable to different label materials.
6. User Interface: Often equipped with touchscreens or control panels for easy operation and parameter adjustments.
7. Integration: Capability to integrate with other production line equipment like printers, coders, or conveyors.
8. Maintenance: Ease of maintenance and availability of spare parts.
9. Size: Compact designs are preferred in space-constrained environments.
10. Customization: Options for custom designs to meet specific industry needs, such as pharmaceutical, cosmetic, or food & beverage sectors.
Terms:
1. Label Roll: The continuous roll of labels fed into the machine.
2. Applicator: The mechanism that physically applies the label to the tube.
3. Conveyor: Transports tubes through the labeling process.
4. Sensors: Detect tube positions and label presence for accurate application.
5. Feeder: Feeds tubes into the machine, either manually or automatically.
6. Encoder: Ensures labels are applied at the correct position by synchronizing machine components.
7. Hot Foil Stamping: Option for adding foil effects to labels during application.
8. Serialization: Capability to print unique codes on each label for tracking and security.
9. HMI (Human Machine Interface): The interface through which operators interact with and control the machine.
10. Inspection System: Integrated cameras or sensors to verify proper label application and orientation, ensuring quality control.
These features ensure the tube labeling machine is effective, efficient, and aligned with the industry's specific needs.
List The Evolution history of "tube labeling machine"
The evolution of the tube labeling machine reflects advancements in industrial automation, efficiency, and precision in packaging processes.
Early Manual Labeling (Pre-20th Century)
- Hand Labeling: Initially, workers manually affixed labels to tubes, a labor-intensive process hindered by inconsistencies and slow productivity.
First Semi-Automatic Machines (Early 20th Century)
- Mechanical Innovations: With the advent of basic automation, semi-automatic labeling machines emerged. These machines combined manual positioning of tubes with mechanical assistance for label application.
Automated Labeling Systems (Mid-20th Century)
- Electric Motors and Sensors: Introduction of electric motors and basic sensors improved the speed and consistency of labeling. Machines could now handle higher volumes with more consistent label placement than manual or semi-automatic methods.
Microprocessor Control (Late 20th Century)
- Programmable Logic Controllers (PLCs): Adoption of PLCs allowed for higher precision, customizable settings, and integration with other packaging line elements. This era saw an increase in the adaptability of machines for different tube sizes and labels.
Advanced Automation (Early 21st Century)
- Computerized Systems: The integration of sophisticated computing technologies enabled advanced features like real-time tracking, error detection, and correction, enhancing overall reliability and efficiency.
- Servo Motors: Use of servo motors allowed for even more precise control of label positioning, higher speeds, and smoother operation.
Smart and Connected Machines (2010s-2020s)
- IoT and Industry 4.0: Integration with IoT devices and Industry 4.0 technologies brought connectivity, remote monitoring, and data analytics capabilities, optimizing maintenance and reducing downtime.
- Artificial Intelligence (AI) and Machine Learning: Implementation of AI and machine learning enabled predictive maintenance, adaptive control systems, and further refinement in error detection and correction.
Future Trends
- Sustainability: Ongoing focus on sustainable practices is leading to the development of eco-friendly materials and energy-efficient systems.
- Greater Customization and Flexibility: Future advancements may focus on increasing machine adaptability for various product types, materials, and label designs, driven by the demand for personalized packaging solutions.
This evolution signifies continuous improvement in accuracy, efficiency, and versatility to meet the growing demands of various industries.
How to Select a Reliable tube labeling machine
Selecting a reliable tube labeling machine involves careful assessment of several key factors:
1. Performance and Speed:
- Evaluate the machine’s labeling speed and accuracy to match your production volume. Check for consistency in label placement.
2. Versatility:
- Ensure the machine can handle different tube sizes and shapes. Flexibility is crucial if you plan to label various products.
3. Ease of Operation:
- Look for user-friendly interfaces and easy setup procedures. Machines with intuitive controls reduce downtime and training needs.
4. Build Quality:
- High-quality, durable construction ensures longevity and reliability. Stainless steel frames and parts resistant to wear and tear are ideal.
5. Integration Capability:
- Check if the machine can integrate seamlessly with existing production lines. Compatibility with other equipment, like printers, enhances efficiency.
6. Label Types:
- Confirm that the machine supports the types of labels you use, such as pressure-sensitive labels or shrink sleeves.
7. Accuracy and Precision:
- High precision in label placement prevents wastage and maintains a professional product appearance.
8. Service and Support:
- Reliable after-sales service and technical support are crucial. Ensure the manufacturer offers prompt service and readily available spare parts.
9. Safety Features:
- Look for safety features to protect operators and maintain compliance with industry standards.
10. Cost and ROI:
- Balance the initial investment with long-term benefits like reduced manual labor and increased production speed. Evaluate the total cost of ownership including maintenance.
11. Reviews and References:
- Research user reviews and ask for references. Positive feedback from similar industry users can indicate reliability.
In summary, a dependable tube labeling machine should offer high performance, versatility, ease of use, robust construction, seamless integration, label compatibility, precision, strong support services, essential safety features, cost-effectiveness, and positive user feedback.
List "tube labeling machine" FAQ
Sure! Here are some frequently asked questions (FAQ) about tube labeling machines:
-
What is a tube labeling machine?
A tube labeling machine is specialized equipment used to apply labels to tubes, such as those used for cosmetics, pharmaceuticals, and other products. The machine ensures labels are applied consistently and accurately. -
How does a tube labeling machine work?
The machine typically uses a conveyor system to feed tubes into position, where sensors detect each tube's presence. Labels are then peeled off their backing and applied to the tubes using rollers or brushes. -
What types of tubes can be labeled?
Tube labeling machines can handle a variety of tube types, including plastic, metal, and laminated tubes. They can label tubes of different shapes and sizes, depending on the machine's specifications. -
What are the benefits of using a tube labeling machine?
Benefits include increased labeling speed, consistent label application, reduced labor costs, and improved product appearance. Automated machines also minimize the risk of human error. -
Can the machine accommodate different label sizes?
Yes, most tube labeling machines are adjustable to accommodate various label sizes and formats. Some models may require different setup procedures for different label dimensions. -
Are tube labeling machines customizable?
Many tube labeling machines offer customizable features such as adjustable speed, different labeling positions, and integration with other production line equipment. -
What maintenance is required for a tube labeling machine?
Regular maintenance includes cleaning the machine, checking and replacing worn parts, and ensuring sensors and rollers are functioning properly. Consult the manufacturer's manual for specific guidelines. -
What is the typical speed of a tube labeling machine?
The speed can vary significantly depending on the machine model and the complexity of the labeling. High-speed models can label hundreds of tubes per minute. -
How do I choose the right tube labeling machine for my needs?
Consider factors like tube size and material, production volume, label type, and budget. Consulting with the manufacturer or a supplier can help you make an informed decision. -
Is training required to operate a tube labeling machine?
Basic training is usually recommended to understand the machine's operation, safety protocols, and maintenance routines. Many manufacturers offer training sessions or detailed user manuals.
Feel free to contact suppliers or manufacturers for any specific questions or needs concerning tube labeling machines.
Top 10 FAQ with answer about tube labeling machine for Buyer Sourcing from China
Sure, here are the top 10 frequently asked questions about tube labeling machines for buyer sourcing from China, summarized in fewer than 300 words:
-
What types of tube labeling machines are available?
Tube labeling machines can be automatic, semi-automatic, or manual. Options include vertical or horizontal wrap-around, single or double-sided labeling, and machines tailored for different tube materials and sizes. -
Can the machine handle different tube sizes and shapes?
Yes, many machines can be adjusted to accommodate various tube sizes and shapes, including round, oval, and square tubes. -
What are the lead times for manufacturing and shipping?
Standard lead times range from 20 to 45 days, depending on customization and production schedules. Shipping can take an additional 1 to 4 weeks. -
Is installation and training provided?
Many manufacturers offer installation services and training, either in-person or through detailed video tutorials and manuals. -
What is the typical warranty period?
Warranties typically range from 1 to 2 years, covering parts and labor. It's important to confirm the specifics with the supplier. -
What is the after-sales support like?
After-sales support usually includes remote troubleshooting, access to spare parts, and sometimes, on-site technician visits. Support levels can vary by manufacturer. -
Are there any certifications required for tube labeling machines?
Machines should comply with international standards such as CE (Europe) and ISO certifications. Verify the required certifications for your market and confirm with the supplier. -
How do I maintain the machine?
Regular maintenance involves cleaning, lubricating moving parts, and timely replacement of worn-out components. Most suppliers provide maintenance schedules and guidelines. -
What is the production speed and accuracy?
Production speeds vary, with some machines labeling up to 200 tubes per minute. Accuracy is typically within ±0.5 mm, but this can vary based on machine specifications. -
Can the machine integrate with existing production lines?
Yes, integration is possible with existing production lines. It's essential to discuss your specific requirements with the supplier to ensure compatibility.
These FAQs should help streamline your sourcing process when looking for a tube labeling machine from China.
