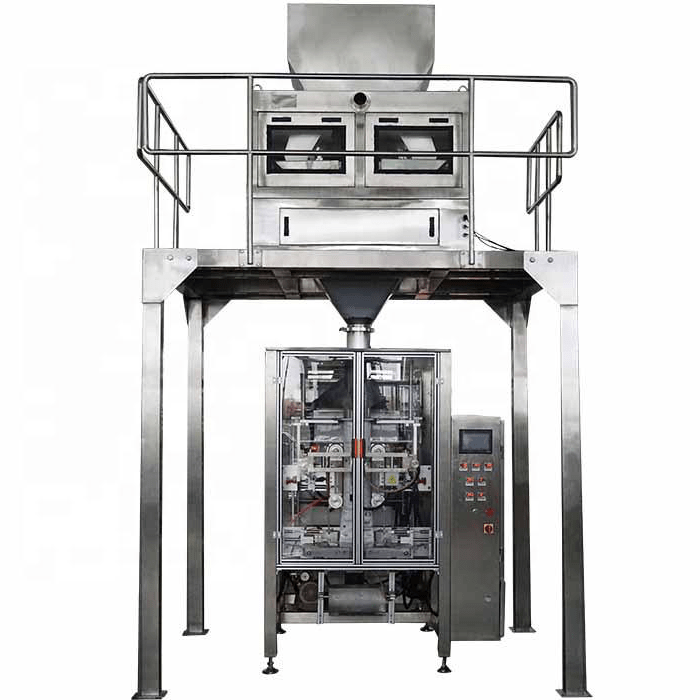

The granule packing machine unit comprises a VFS vertical form fill & seal film pulling packaging machine, linear scale, cup filler or multihead weigher (10 heads or 14 heads) with a Z type elevator. It combines weighing, bag-making, nitrogen blowing, filling, sealing, printing, punching, and counting functions. The machine uses servo motor-driven timing belts for film pulling and features control components from renowned international brands for reliable performance. Both transverse and longitudinal sealing mechanisms use a pneumatic system for stable and reliable operation. The advanced design allows for easy adjustment, operation, and maintenance. This machine can be efficiently integrated with other equipment. It can operate at high speeds, reaching 80 to 150 bags per minute for various granule products such as chips, candies, seeds, nuts, frozen foods, vegetables, and more.
Specifications:
| Model (Roll film width) | FP-320 | FP-420 | FP-540 | FP-730 | FP-920 | FP-1100 | FP-1500 |
|---|---|---|---|---|---|---|---|
| Bag Length (mm) | 80-180 | 80-300 | 80-400 | 100-400 | 150-600 | 200-900 | 200-1000 |
| Bag Width (mm) | 45-150 | 50-200 | 80-250 | 180-350 | 150-450 | 150-530 | 200-730 |
| Max Width of Roll (mm) | 320 | 420 | 520 | 720 | 920 | 1100 | 1500 |
| Packing Speed (bags/min) | 20-55 | 20-80 | 20-100 | 20-100 | 10-90 | 10-80 | 5-50 |
| Air Consumption (Mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Gas Consumption (m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Power Voltage (V) | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Power (kW) | 3kW | 2.2kW | 4kW | 5kW | 5kW | 6kW | 6kW |
| Weight (kg) | 350 | 540 | 600 | 900 | 1000 | 1100 | 1200 |
Features and Benefits:
- Supports various pouch types for versatile packaging options.
- User-friendly operation with a PLC controller and color touch-screen interface.
- Easy pouch adjustment within 10 minutes.
- Adjustable speed via frequency control.
- High automation with machine alarms and failure detection.
- Equipped with servo motor for film pulling and automatic offset correction.
- Offers multiple drive and sealing mechanism options for customization.
- Safety features include automatic alarms for film absence or inadequate air pressure.
- Hygienic construction with SUS304 stainless steel parts.
Applications:
Ideal for packaging a wide range of granule products such as nuts, seeds, candies, frozen foods, vegetables, snacks, and more.
Working Process:
Auto Weighing → Film Pulling → Date Printing → Filling → Bag Forming → Bag Sealing → Finished Product Output
